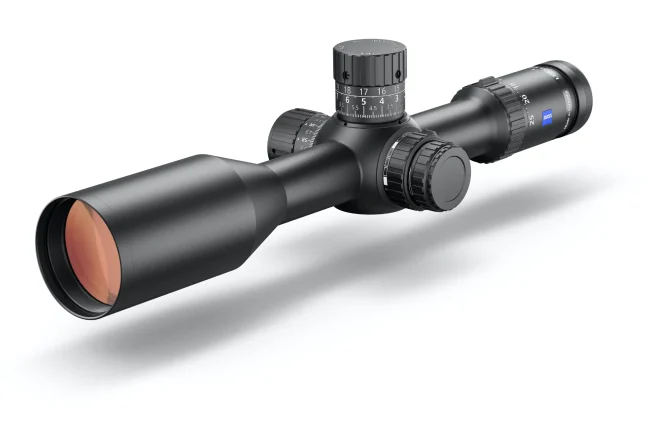

ZEISS LRP S5 525-56

Includes Free Pro Series Throw Lever and Billet Level

The ZEISS LRP S5 525-56 is a first focal plane riflescope with a 34 mm main tube, and provides a massive amount of total elevation travel out-of-the-box, which is extremely beneficial for long-range hunting.

The LRP S5 5-25×56 magnification range covers the maximum amount of unique longer-range hunting scenarios. The 25x magnfication will allow the hunter to confirm the finest of details at the longest distances before taking the shot. The 56 mm objective assures the hunter excellent image quality and light transmission.

This model is available in both Milliradian and Minute-of-Angle configurations. It’s perfect for specialized hunting applications; and it is an exceptional choice on a variety of long-range rifle platforms that demand a most excellent optic for utmost performance.

With its higher magnification range, the ZEISS LRP S5 525-56 model is the most ideal scope for long-range hunting, target shooting, testing ammunition, and load development.

The ZF-MRi smart reticle was designed with professional input from active competitors and instructors. Its purpose is to dominate at PRS and NRL matches. The milliradian (MRAD) reticle incorporates a “tree-style” primary structure with useful hash marks, dots, and reference numbers –without the clutter. The points-of-aim and holds are represented in 0.2, 0.5, and 1.0 MRAD increments; and even numbers are displayed for fast and intuitive visual reference. If winning is your goal, then the ZF-MRi reticle was made for you.

ZEISS LRP S5 525-56 Features

• Best-in-class total elevation travel
  • A massive total elevation travel of 40.7 MRAD or 140 MOA allows the ZEISS LRP S5 to be more capable than your ammunition – and engage targets up to 1,500 yards and beyond out-of-the-box.
• Daylight visible illuminated reticle
  • Digitally controlled diffractive reticle illumination technology delivers an exceptionally bright point of aim – regardless of the amount of incoming light – allowing you to confirm precise shot placement on target.
• Highly repeatable and tactile turrets
  • Precise adjustments provide you with absoluteassurance of making the most accurate shotspossible – regardless of distance.

• Compact and heavy-duty riflescope

  • Final validation of the design proves the ZEISS LRP S5 riflescopes withstand multiple shock tests of an enormous 1,500 g-force. Design requirements also include initial shock testing of over 800 impact cycles at 1,000 g-force.

• A clear view, whatever the weather

  • There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.

• ZEISS T* Coating

  • ZEISS T* coating is a guarantee of the brilliant, high-contrast images­­ which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.

ZEISS LRP S5 525-56 Specs

Performance

Magnification	3.6 – 18 ×
Effective lens diameter	50 mm
Light transmission	90%
Exit pupil diameter	9.3 – 2.8 mm
Twilight factor	13.4 – 30.0
Field of view at 100 m (yds)	10.0 – 2.0 m (30 – 6 ft)
Objective viewing angle	5.7° – 1.1°
Diopter adjustment range	+ 2.0 | − 3.0 dpt
Eye relief	90 mm (3.54 “)
Parallax setting	25 m – ∞ (27 yds – ∞)
Vertical adjustment range at 100 m	40,7 MRAD | 140 MOA
Lateral adjustment range at 100 m	24 MRAD | 60 MOA
Adjustment per click at 100 m	0,1 MRAD | 0,25 MOA
Centre tube diameter	34 mm
Eyepiece tube diameter	46 mm
Objective tube diameter	56 mm

Features

LotuTec | Nitrogen filled	+ | +
Water resistance	400 mbar

Physical

Operating temperature	− 25°C | + 56°C (− 13°F | + 133°F)
Length	343 mm (13.5 “)
Weight (without inner rail)	930 g (32.8 oz)
Weight (with inner rail)	−



Reticle ZF-MRi Illuminated Data Sheet
