ZEISS Conquest V4 4-16×5
Includes Free Pro Series Throw Lever and Billet Level
The Conquest V4 riflescopes are for hunters and shooters whose lifestyle and adventures involve traditional and long-range hunting, as well as shooting and long-range shooting. They were designed as a lightweight, high-performance product line for various demanding hunting and shooting applications. They are, by any standard, ‘best-in-class’.
The Conquest V4 family is based on a 4x zoom ratio, incorporates a 30 mm main tube, and consists of the: 3-12×44, 3-12×56, 4-16×44, 4-16×50, and 6-24×50 models. Each model delivers 90% to-the-eye light transmission, offers .25 MOA click values, capped windage turret or external locking windage turret, a large range of total elevation and windag travel, and various traditional and smart second focal plane reticles.
ZEISS Conquest V4 models are backed by the ZEISS Limited Lifetime Transferable Warranty AND Five-Year No-Fault Policy.

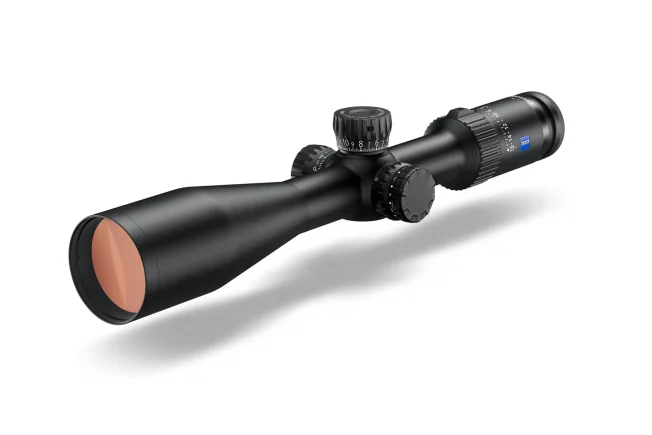

ZEISS Conquest V4 4-16×50
Thanks to its well-balanced zoom range, this compact riflescope is the perfect all-around scope option for short, mid-range, and long-distance shots. At the 16x setting, you can easily evaluate each detail on the animal before pulling the trigger. The 44mm objective size offers great low-light performance at lower magnification ranges, while allowing the rifle and riflescope package to maintain a compact footprint. To support long-range hunting and shooting, the scope has a side parallax adjustment and an external elevation turret with Ballistic Stop. There are five reticle options available, from duplex-style to advanced smart reticles. These include the non-illuminated #20 Z-Plex and the ZMOA-T30. Illuminated reticle options are: #60 duplex, ZBi, and ZMOAi-T30. All-new is the External Locking Windage Turret option – an industry first-in-class – and represents an excellent choice for the long-range hunting and shooting enthusiast.
ZBi Illuminated
This reticle was primarily developed for hunting in open terrain and over long distances. The tree-shaped crosshairs are intuitively designed and offer an extremely precise aiming point. The tick marks and dots have a distance of one minute of angle (1 MOA) at the respective reference magnification and always provide a suitable holdover point, even in windy conditions. The ZEISS Hunting app can be used to quickly and precisely determine both bullet drop and wind drift for practically any ammunition, and also displays the distance values in a visual depiction of the reticle. Only the center area of the reticle is illuminated, for precise aiming even in poor lighting conditions. The ZEISS Hunting app can be used to quickly and precisely determine the change in subtension and the resulting bullet drop compensation and wind drift correction values for practically any ammunition.
ZMOAi-1Illuminated
The ZEISS ZMOA ballistic reticle is located in the second image plane and has a subtension of 1 MOA (ZMOA-1) between the tick marks at the respective riflescope’s reference magnification. Since the tick marks are only shown along the crosshairs, the shooter maintains an excellent overview of the entire field of view. They are suitable for both rapid bullet drop compensation and wind drift correction. The ZEISS Hunting app can be used to quickly and precisely determine both values for practically any ammunition, and also displays the distance values in a visual depiction of the reticle.
ZMOAi-T30 Illuminated
The ZMOAi-T30 reticle is the illuminated version of the ZMOA-T30. It offers the perfect balance between sport and hunting shooting. Hunters and target shooters prefer this option for their all-around riflescope. The MOA (minute of angle) crosshairs contain MOA tick marks and dots that provide a distance of 1 MOA at reference magnification and cover a bullet drop of 30 MOA. The lateral lines and holdover points are extremely useful for wind correction and are positioned in the field of view for maximum effectiveness and minimum distraction. The reticle illumination is limited to the central fine crosshairs, preventing the shooter from being affected by glare and providing an extremely effective and precise aiming point in adverse lighting conditions. The ZEISS Hunting app can be used to quickly and precisely determine the change in subtension and the resulting bullet drop compensation and wind drift correction values for practically any ammunition.
ZEISS Conquest V4 4-16×50 Features
-
4x Zoom Range
- The 4x zoom range allows hunters to perfectly recognize details and offers an excellent overall view for a safe and accurate shot.
-
A clear view, whatever the weather
- There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
-
Stable and Shot-Proof
- The ZEISS V8, ZEISS Victory HT, ZEISS Conquest V6, and ZEISS Conquest V4 riflescopes are all ideally suited for use with “clip-on” attachments.
-
90% Light Transmission
-
- Higher definition glass produces 90% to-the-eye light transmission, great low-light performance and excellent target resolution across the entire magnification range.
-
ZEISS T* Coating
- ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
ZEISS Conquest V4 4-16×50 Specs
Performance
| Magnification | 4 – 16 x |
| Effective lens diameter | 34.5 – 50 mm |
| Light transmission | 90% |
| Exit pupil diameter | 8.5 – 3.1 mm |
| Twilight factor | 11.7 – 28.3 |
| Field of view at 100 m (yds) | 8.7 – 2.2 m (28.5 – 7.1 ft) |
| Objective viewing angle | 5.4° – 1.4° |
| Diopter adjustment range | + 2.0 | − 3.0 dpt |
| Eye relief | 90 mm (3.54 “) |
| Parallax setting | 9.1 m – ∞ (10 yds – ∞) |
| Centre tube diameter | 30 mm |
| Eyepiece tube diameter | 44 mm |
| Objective tube diameter | 56 mm |
Features
| LotuTec | Nitrogen filled | + | + |
| Water resistance | 400 mbar |
Physical
| Operating temperature | − 25°C | + 50°C (− 13°F | + 122°F) |
| Length | 368 mm (14.5 “) |
| Weight (without inner rail) | 652 g (23.0 oz) |
| Weight (with inner rail) | – |
