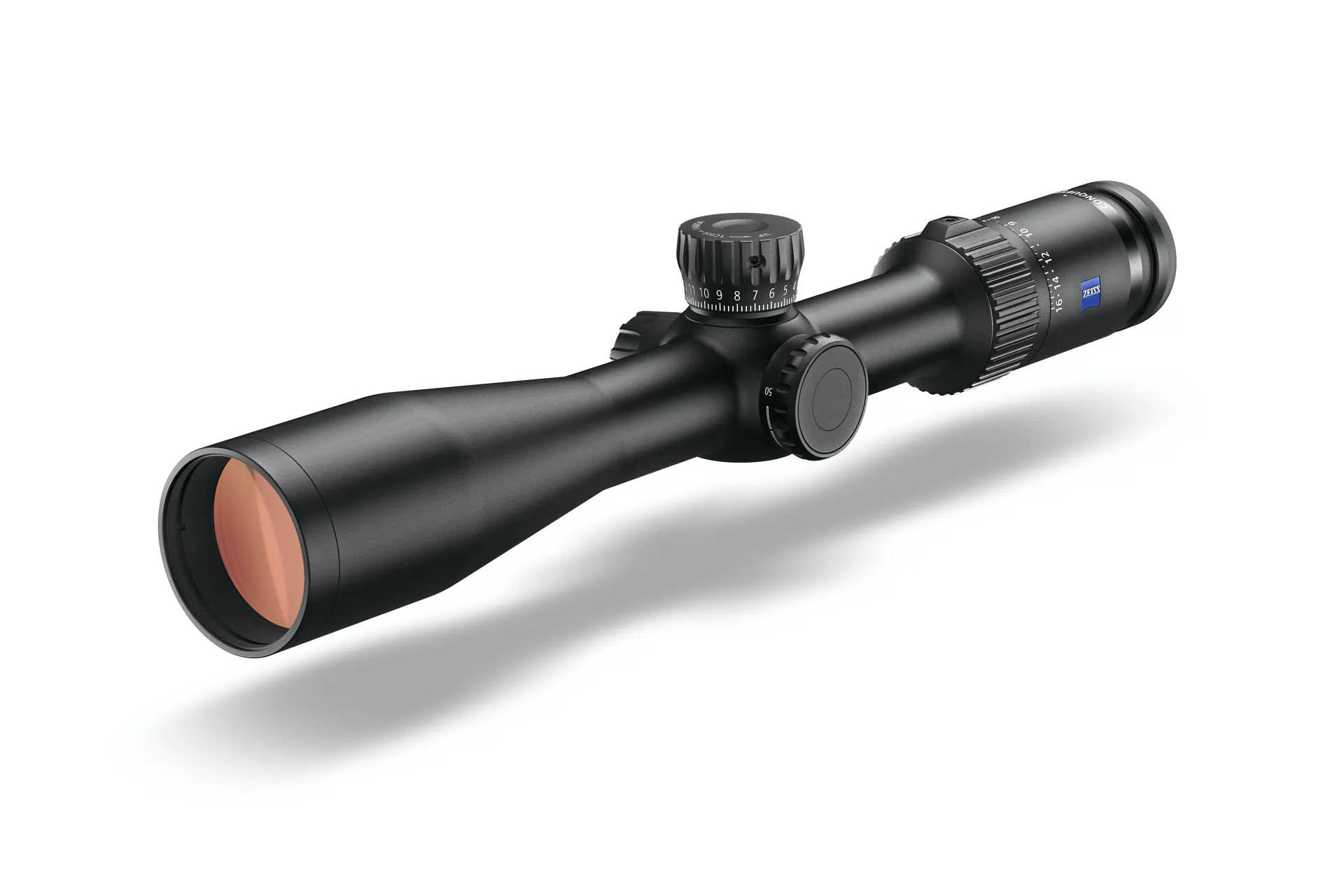

ZEISS Conquest V4 4-16×44 (Z-Plex)
Includes Free Pro Series Throw Lever and Billet Level
The Conquest V4 riflescopes are for hunters and shooters whose lifestyle and adventures involve traditional and long-range hunting, as well as shooting and long-range shooting. They were designed as a lightweight, high-performance product line for various demanding hunting and shooting applications. They are, by any standard, ‘best-in-class’.
The Conquest V4 family is based on a 4x zoom ratio, incorporates a 30 mm main tube, and consists of the: 3-12×44, 3-12×56, 4-16×44, 4-16×50, and 6-24×50 models. Each model delivers 90% to-the-eye light transmission, offers .25 MOA click values, capped windage turret or external locking windage turret, a large range of total elevation and windag travel, and various traditional and smart second focal plane reticles.
ZEISS Conquest V4 models are backed by the ZEISS Limited Lifetime Transferable Warranty AND Five-Year No-Fault Policy.
ZEISS Conquest V4 4-16×44 (Z-Plex)
Thanks to its well-balanced zoom range, this compact riflescope is the perfect all-around scope option for short, mid-range, and long-distance shots. At the 16x setting, you can easily evaluate each detail on the animal before pulling the trigger. The 44mm objective size offers great low-light performance at lower magnification ranges, while allowing the rifle and riflescope package to maintain a compact footprint. To support long-range hunting and shooting, the scope has a side parallax adjustment and an external elevation turret with Ballistic Stop. There are five reticle options available, from duplex-style to advanced smart reticles. These include the non-illuminated #20 Z-Plex and the ZMOA-T30. Illuminated reticle options are: #60 duplex, ZBi, and ZMOAi-T30. All-new is the External Locking Windage Turret option – an industry first-in-class – and represents an excellent choice for the long-range hunting and shooting enthusiast
Reticle 20 (Z-Plex)Non-illuminated
The very fine reticle 20 is located in the second image plane. During daytime hunting, it enables you to shoulder your rifle and aim extremely precisely, even at long distances. The transition from the bars to the fine lines in the center is arrow-shaped in the reticle 20. This gives you the ability to aim especially precisely at small targets.
ZEISS Conquest V4 4-16×44 (Z-Plex) Features
-
4x Zoom Range
- The 4x zoom range allows hunters to perfectly recognize details and offers an excellent overall view for a safe and accurate shot.
-
A clear view, whatever the weather
- There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
-
Stable and Shot-Proof
-
The ZEISS V8, ZEISS Victory HT, ZEISS Conquest V6, and ZEISS Conquest V4 riflescopes are all ideally suited for use with “clip-on” attachments.
-
-
90% Light Transmission
-
- Higher definition glass produces 90% to-the-eye light transmission, great low-light performance and excellent target resolution across the entire magnification range.
-
ZEISS T* Coating
- ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
ZEISS Conquest V4 4-16×44 (Z-Plex) Specs
Performance
|
Magnification |
4 – 16 x |
|
Effective lens diameter |
33.2 – 44 mm |
|
Light transmission |
90% |
|
Exit pupil diameter |
8.5 – 2.8 mm |
|
Twilight factor |
11.5 – 26.5 |
|
Field of view at 100 m (yds) |
9.5 – 2.4 m (28 – 7 ft) |
|
Objective viewing angle |
5.4° – 1.4° |
|
Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
|
Eye relief |
90 mm (3.54 “) |
|
Parallax setting |
9.1 m – ∞ (10 yds – ∞) |
|
Adjustment range at 100 m |
230 × 175 cm |
|
Adjustment per click at 100 m |
1/4 MoA (0.7 cm /100 m) |
|
Centre tube diameter |
30 mm |
|
Eyepiece tube diameter |
44 mm |
|
Objective tube diameter |
50 mm |
Features
|
LotuTec | Nitrogen filled |
+ | + |
|
Water resistance |
400 mbar |
Physical
|
Operating temperature |
− 25°C | + 50°C (− 13°F | + 122°F) |
|
Length |
356 mm (14.0 “) |
|
Weight (without inner rail) |
640 g (22.6 oz) |
|
Weight (with inner rail) |
– |
Z-Plex
