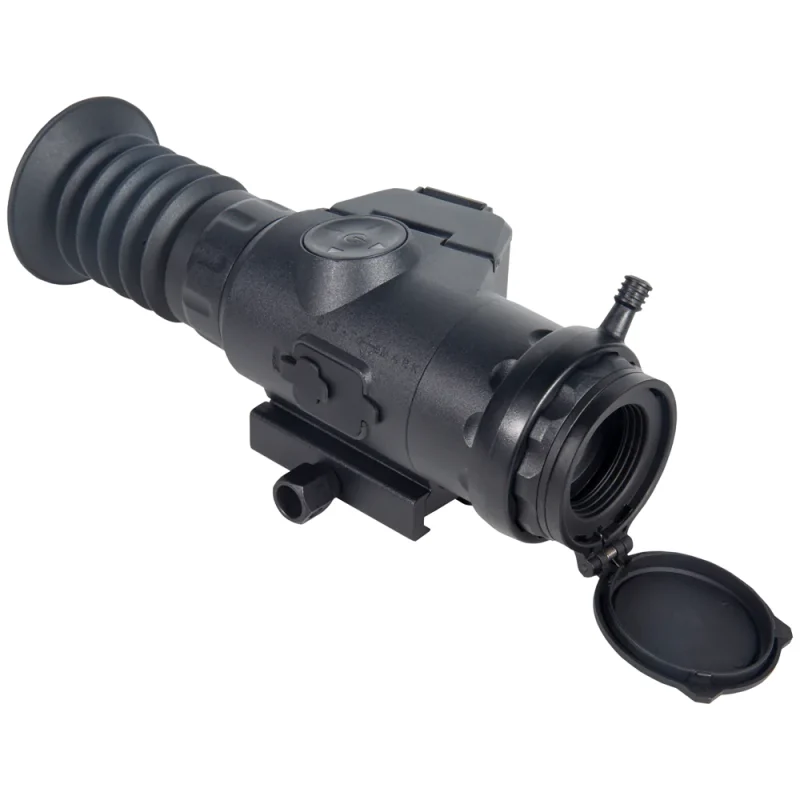

Wraith 4K Mini Digital Riflescope 2-16×32
The Wraith 4K Mini Digital Riflescope 2-16×32 combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840×2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.
Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (black & white or black-white custom), 850nm IR illuminator and first-focal-plane reticle options, USB-C external power connector, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester.
Models:
- SM18041
- Magnification: 2-16×32
- Field of View, Ft @ 100 Yds: 40
- SM18042
- Magnification: 4-32×32
- Field of View, Ft @ 100 Yds: 21
Included in Package
- 850nm IR Illuminator
- Flip-up lens cover
- Focus throw lever
- Eye cup
- Fixed picatinny mount
- User manual
Battery Used
- Type: 2x CR123A
- Quantity: 1
Product Downloads
- Product Manual
- Product Specifications
- Quick Start Guide
- Product Comparison
- How to Update Wraith 4K Mini Firmware
Features
- 4K Digital Imaging
- 300-yard night detection range
- Night vision mode
- Daytime color mode
- Built-in 4K video recording with audio capabilities
- 14 reticle options with 9 colors
Wraith 4K Mini Digital Riflescope 2-16×32 Specs
| Electronic components | |
| Type of sensor | CMOS sensor |
| Sensor resolution, pixels | 4K (3840×2160) |
| Display type | FLCOS |
| Display Resolution, pix. | 1280×720 |
| Built-In Video Recorder Availability | Yes |
| Maximum memory card supported, Gb | 256 |
| Format of video clip | AVI |
| Resolution of video clip | 1080/4K |
| Format of photo files | JPEG |
| Resolution of photo files | 4k |
| Memory capacity | Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level. |
| Optical characteristics | |
| Lens diameter, mm | 32 |
| Magnification: | |
| Mini 4K 2-16×32 (SM18041) | 2-16x |
| Mini 4K 4-32×32 (SM18042) | 4-32x |
| Field of View, Ft @ 100 Yds: | |
| Mini 4K 2-16×32 (SM18041) | 40 |
| Mini 4K 4-32×32 (SM18042) | 21 |
| IR-illuminator | |
| Emitter | LED |
| IR Wavelength, nm | 850nm |
| Equivalent IR Power, mW | ~1060 on high, ~540 on medium, ~400 on low |
| Battery Life | 2 hours on high |
| Battery type | 2x CR123A |
| Range of Detection | |
| Night Vision detection range, yd/m | 300/274 |
| Power Supply | |
| Power Supply, v | 6 |
| Battery type | 2x CR123A |
| Battery life | 3.6Hrs Video Mode/ 4.4Hrs Preview Mode |
| External Power Supply | 5V via USB-C |
| Reticle | |
| Windage & Elevation click value | 1 pixel/ ~X0.4MOA |
| Adjustment range, elevation | ~ 150 MOA |
| Adjustment range, windage | ~ 350 MOA |
| Number of reticle options | 10 SFP 4FFP |
| Colors | Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Physical & operational characteristics | |
| Body Material | Aluminum |
| Accessory rail mount | Picatinny |
| Operating Temp,°F / C° | 32 to 140 / 0 to 60 |
| Waterproof rating | IPX6 – water resistant |
| Nitrogen Purged, yes/no | no |
| Shockproof, yes/no | yes, 3ft |
| Maximum recoil, caliber | .308 |
| Tube diameter | n/a |
| Length, in/mm | 6.299/160 |
| Width, in/mm | 3.031/77 |
| Height, in/mm | 2.913/74 |
| Weight (with batteries), oz | 21.6 oz |
