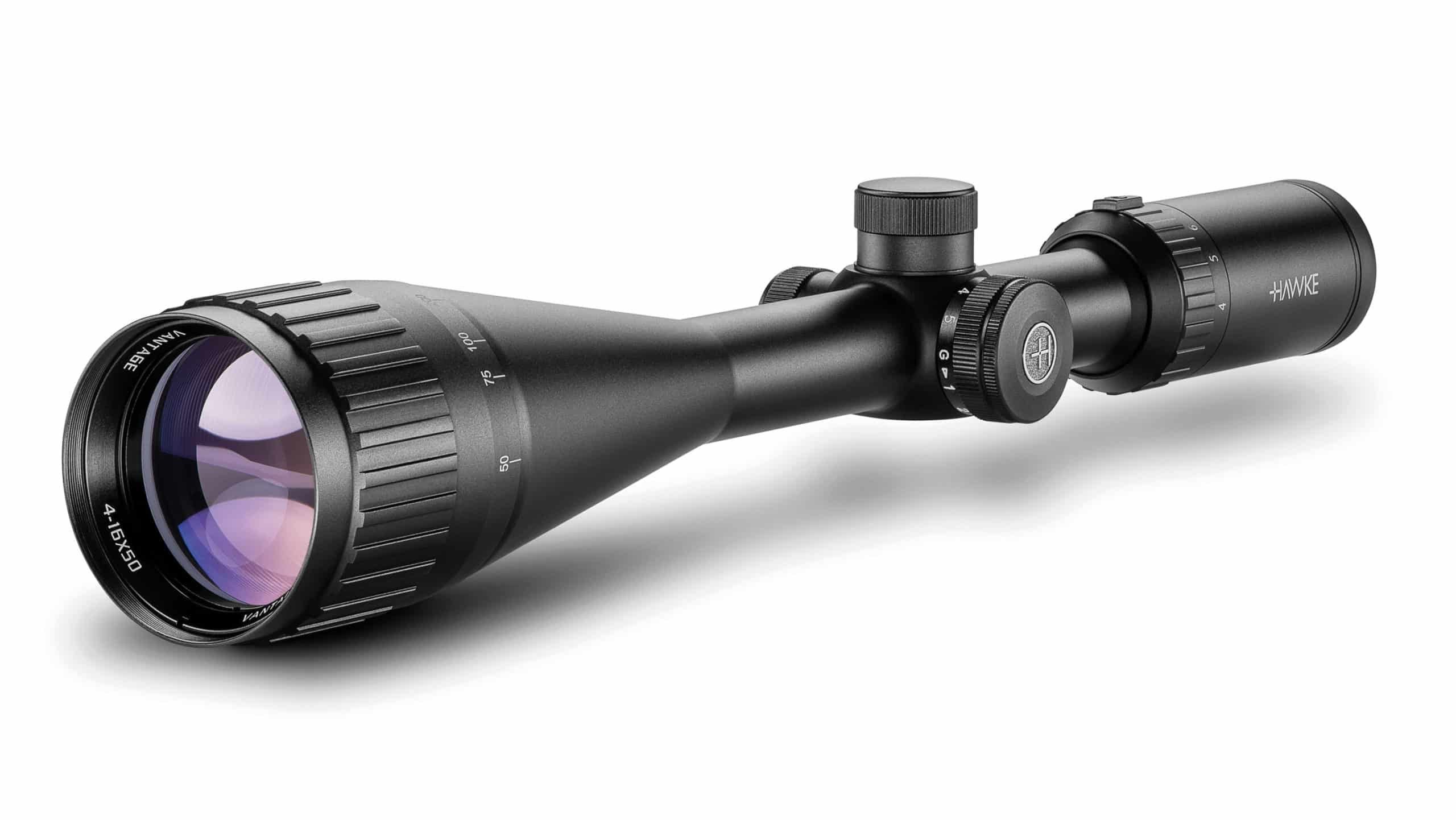

VANTAGE IR 4-16x50 AO

Get a better view on your target each and every time you’re in the field with the VANTAGE IR 4-16×50 AO mounted on your firearm of choice. Featuring red and green illumination for great visibility in low light situations, these Rifle Scopes developed by the specialists at Hawke Sport Optics offer five levels of brightness for easy adjustment even when your target is against a dark background.

The glass etched reticle is easily seen thanks to the fully multi-coated optics, which provide exceptional light transmission and clarity with the Hawke Sport Optics Vantage 4-16×50 IR Scope. A high torque zoom ring stands up to heavy recoil for flawless shooting with the Hawke Sport Optics Vantage 4-16×50 IR Rugged Riflescope.



VANTAGE IR 4-16×50 AO Features

• Capped Low-Profile Turrets
• 1 Inch Mono-Tube Chassis
• Adjustable Objective For Parallax Correction
• Illumination
• 11 Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All caliber rated.

Hawke No-Fault Lifetime Warranty.



VANTAGE IR 4-12×50 AO Specs

Length:	388mm	15.3″
Weight:	620g	21.9oz
Eye relief:	89mm	3.5″
Focus/Parallax – AO	14m – ∞	14m – ∞
Field of View:	7.8-2.1m @100m	23.6-6.2ft @100yds
Exit Pupil:	13-3mm	0.5-0.1″

Chassis	1″ Mono-tube
Optical System	4-12x
Objective	50mm
Illumination	Red / Green
Reticle	Mil Dot

Elevation Increment	1⁄4 MOA
Elevation Adjustment Range:	65 MOA
Windage Increment	1⁄4 MOA
Windage Adjustment Range	65 MOA

Material	Aluminum
Ocular Type	Fast Focus
Lens Coating	Fully Multi-Coated – 11 Layers
Power Selector Style	Knurled Posi-Grip
Focal Plane	Second Focal Plane (SFP)
Turret Caps	Yes
Turret Type	Low Profile

Mil Dot Illuminated Reticle

The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.

Rimfire .17 HMR Reticle (16x)

Registered reticle design exclusive to Hawke. Aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.

Designed for the .17 HMR caliber. Zero on 16x magnification at 100 yards and all aim points are pre-calculated. 2550 fps (777 m/s).

The scope can also be used for 100m zero with aimpoints correct in metric when the magnification is set to 13.1x.

Instructions
