Swarovski Z3 Riflescope

From: $777.00 $699.00

Sale!

Swarovski Z3 Riflescope

From: $777.00 $699.00

Description

Swarovski Z3 Riflescope (Includes Free Carbon Fiber Nylon Lever and Billet Level)

The Swarovski Z3 Riflescope is a high quality no frills big game hunting scope in a light weight, simple design. Built on a one inch alloy tube, these scopes deliver exceptional light transmission and optical clarity with reliable point of impact retention. If you are a hunter or shooter looking for a large field of view, 3x zoom and European style quick diopter adjustment with fixed parallax, the Swarovski is the rifle scope you.

Swarovski Z3 RifleScope models:

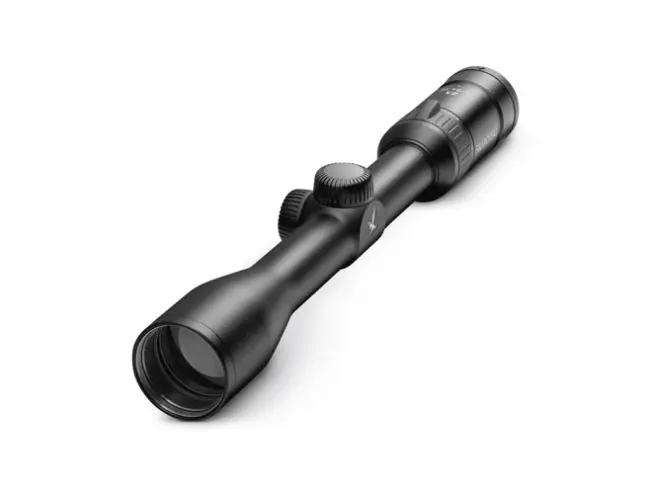

Swarovski Z3 3-9×36 PLEX Reticle

Being the smallest rifle scope in the Z3 range, the Swarovski Z3 3-9×36 PLEX Reticle is ideal for any hunter looking for an compact rifle scope with good optics. It particularly suits those who favor traditional hunting firearms. The Swarovski Z3 3-9×36 PLEX Reticle is a 1-inch rifle scope for any hunter who appreciates a small rifle scope with tried-and-tested optics. It is particularly suitable for traditional hunting weapons.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com

Swarovski Z3 3-9×36 PLEX Reticle Technical Data

Magnification 3-9x
Effective objective lens diameter (mm) 36
Exit pupil diameter (mm) 12-4
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 39-13.5 / 13-4.5
Field of view (degrees) 7.4-2.6
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

7.9-18

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

58 / 1.6

Objective filter thread

M 39×0.75

Length (in / mm)

12.13 / 308

Weight (oz / g)

12 / 340

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 3-9×36 PLEX Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3
Swarovski Z3 3-9×36 4A Reticle

Being the smallest rifle scope in the Z3 range, the Swarovski Z3 3-9×36 4A Reticle is ideal for any hunter looking for an compact rifle scope with good optics. It particularly suits those who favor traditional hunting firearms. The Swarovski Z3 3-9×36 4A Reticle is a 1-inch rifle scope for any hunter who appreciates a small rifle scope with tried-and-tested optics. It is particularly suitable for traditional hunting weapons.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com

Swarovski Z3 3-9×36 4A Reticle Technical Data

Magnification 3-9x
Effective objective lens diameter (mm) 36
Exit pupil diameter (mm) 12-4
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 39-13.5 / 13-4.5
Field of view (degrees) 7.4-2.6
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

7.9-18

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

58 / 1.6

Objective filter thread

M 39×0.75

Length (in / mm)

12.13 / 308

Weight (oz / g)

12 / 340

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 3-9×36 4A Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3

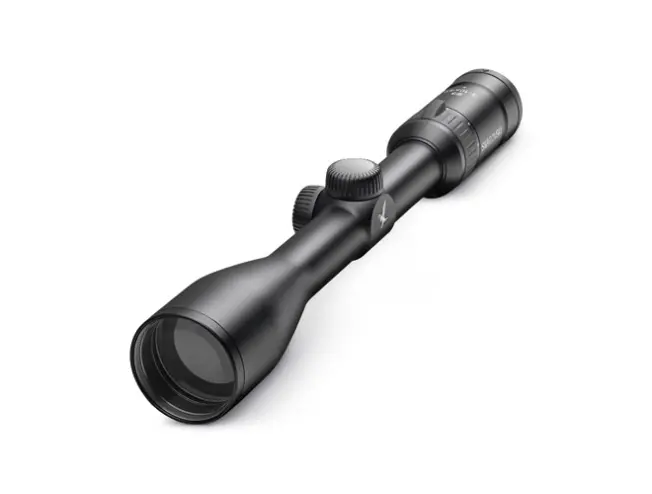

Swarovski Z3 3-10×42 PLEX Reticle

The Swarovski Z3 3-10×42 PLEX Reticle impresses with its sturdy optics, despite its lightweight design, making it particularly suitable for still hunting. It has a shapely outline and is intended for conventional hunting firearms. The slim, sturdy 1-inch Z3 3-10×42 L rifle scope stands out for its rugged optics with its lightweight design. This makes it particularly ideal for hunting in a stand. It is suitable for every type of firearm thanks to its classic design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 3-10×42 PLEX Reticle Technical Data

Magnification

3.3-10x
Effective objective lens diameter (mm) 42
Exit pupil diameter (mm) 12.6-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 33-11.7 / 11-3.9
Field of view (degrees) 6.3-2.2
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

8.7-20.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

50 / 1.4

Objective filter thread

M 44×0.75

Length (in / mm)

12.64 / 321

Weight (oz / g)

12.7 / 360

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 3-10×42 PLEX Reticle Downloads

Instruction Manuals

Instruction manual / Technical Data – BRX

Technical Data

Technical Data – Z3
Swarovski Z3 3-10×42 4A Reticle

The Swarovski Z3 3-10×42 4A Reticle impresses with its sturdy optics, despite its lightweight design, making it particularly suitable for still hunting. It has a shapely outline and is intended for conventional hunting firearms. The slim, sturdy 1-inch Z3 3-10×42 L rifle scope stands out for its rugged optics with its lightweight design. This makes it particularly ideal for hunting in a stand. It is suitable for every type of firearm thanks to its classic design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 3-10×42 4A Reticle Technical Data

Magnification

3.3-10x
Effective objective lens diameter (mm) 42
Exit pupil diameter (mm) 12.6-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 33-11.7 / 11-3.9
Field of view (degrees) 6.3-2.2
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

8.7-20.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

50 / 1.4

Objective filter thread

M 44×0.75

Length (in / mm)

12.64 / 321

Weight (oz / g)

12.7 / 360

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 3-10×42 4A Reticle Downloads

Instruction Manuals

Instruction manual / Technical Data – BRX

Technical Data

Technical Data – Z3
Swarovski Z3 3-10×42 BRX Reticle

The Swarovski Z3 3-10×42 BRX Reticle impresses with its sturdy optics, despite its lightweight design, making it particularly suitable for still hunting. It has a shapely outline and is intended for conventional hunting firearms. The slim, sturdy 1-inch Z3 3-10×42 L rifle scope stands out for its rugged optics with its lightweight design. This makes it particularly ideal for hunting in a stand. It is suitable for every type of firearm thanks to its classic design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 3-10×42 BRX Reticle Technical Data

Magnification

3.3-10x
Effective objective lens diameter (mm) 42
Exit pupil diameter (mm) 12.6-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 33-11.7 / 11-3.9
Field of view (degrees) 6.3-2.2
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

8.7-20.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

50 / 1.4

Objective filter thread

M 44×0.75

Length (in / mm)

12.64 / 321

Weight (oz / g)

12.7 / 360

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 3-10×42 BRX Reticle Downloads

Instruction Manuals

Instruction manual / Technical Data – BRX

Technical Data

Technical Data – Z3
Swarovski Z3 3-10×42 BRH Reticle

The Swarovski Z3 3-10×42 BRH Reticle impresses with its sturdy optics, despite its lightweight design, making it particularly suitable for still hunting. It has a shapely outline and is intended for conventional hunting firearms. The slim, sturdy 1-inch Z3 3-10×42 L rifle scope stands out for its rugged optics with its lightweight design. This makes it particularly ideal for hunting in a stand. It is suitable for every type of firearm thanks to its classic design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 3-10×42 BRH Reticle Technical Data

Magnification

3.3-10x
Effective objective lens diameter (mm) 42
Exit pupil diameter (mm) 12.6-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 33-11.7 / 11-3.9
Field of view (degrees) 6.3-2.2
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

8.7-20.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

50 / 1.4

Objective filter thread

M 44×0.75

Length (in / mm)

12.64 / 321

Weight (oz / g)

12.7 / 360

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 3-10×42 BRH Reticle Downloads

Instruction Manuals

Instruction manual / Technical Data – BRX

Technical Data

Technical Data – Z3

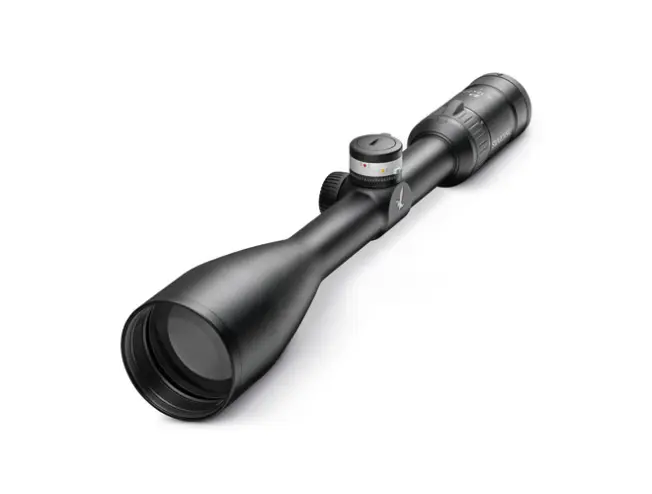

Swarovski Z3 4-12×50 PLEX Reticle

The Swarovski Z3 4-12×50 PLEX Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter and 12x magnification. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12×50 L is designed to cope with these values – even with an incredibly lightweight design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 4-12×50 PLEX Reticle Technical Data

Magnification

4-12x
Effective objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 29.1-9.9 / 9.7-3.3
Field of view (degrees) 5.5-1.9
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

10.6-24.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

43 / 1.2

Objective filter thread

M 52×0.75

Length (in / mm)

13.78 / 350

Weight (oz / g)

14.5 / 410

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 4-12×50 PLEX Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3
Swarovski Z3 4-12×50 4A Reticle

The Swarovski Z3 4-12×50 4A Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter and 12x magnification. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12×50 L is designed to cope with these values – even with an incredibly lightweight design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 4-12×50 4A Reticle Technical Data

Magnification

4-12x
Effective objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 29.1-9.9 / 9.7-3.3
Field of view (degrees) 5.5-1.9
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

10.6-24.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

43 / 1.2

Objective filter thread

M 52×0.75

Length (in / mm)

13.78 / 350

Weight (oz / g)

14.5 / 410

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 4-12×50 4A Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3
Swarovski Z3 4-12×50 BRX Reticle

The Swarovski Z3 4-12×50 BRX Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter and 12x magnification. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12×50 L is designed to cope with these values – even with an incredibly lightweight design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 4-12×50 BRX Reticle Technical Data

Magnification

4-12x
Effective objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 29.1-9.9 / 9.7-3.3
Field of view (degrees) 5.5-1.9
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

10.6-24.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

43 / 1.2

Objective filter thread

M 52×0.75

Length (in / mm)

13.78 / 350

Weight (oz / g)

14.5 / 410

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 4-12×50 BRX Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3
Swarovski Z3 4-12×50 BRX-Heavy Reticle

The Swarovski Z3 4-12×50 BRX-Heavy Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter and 12x magnification. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12×50 L is designed to cope with these values – even with an incredibly lightweight design.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 4-12×50 BRX-Heavy Reticle Technical Data

Magnification

4-12x
Effective objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 29.1-9.9 / 9.7-3.3
Field of view (degrees) 5.5-1.9
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

10.6-24.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

43 / 1.2

Objective filter thread

M 52×0.75

Length (in / mm)

13.78 / 350

Weight (oz / g)

14.5 / 410

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 4-12×50 BRX-Heavy Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3
Swarovski Z3 4-12×50 BT PLEX Reticle

The Swarovski Z3 4-12×50 BT PLEX Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter and 12x magnification. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12×50 BT L is designed to cope with these values – even with an incredibly lightweight design. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 4-12×50 BT PLEX Reticle Technical Data

Magnification

4-12x
Effective objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 29.1-9.9 / 9.7-3.3
Field of view (degrees) 5.5-1.9
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

10.6-24.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

43 / 1.2

Objective filter thread

M 52×0.75

Length (in / mm)

13.78 / 350

Weight (oz / g)

14.5 / 410

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 4-12×50 BT PLEX Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3

[/bg_collapse]

Swarovski Z3 4-12×50 BT 4W Reticle

The Swarovski Z3 4-12×50 BT 4W Reticle is a 1-inch rifle scope that proves its strength in poor light conditions and over longer distances thanks to its 50 mm objective lens diameter and 12x magnification. Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12×50 BT L is designed to cope with these values – even with an incredibly lightweight design. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.



Please Note: This is not an optic we typically stock, but we are able to order it for you for the best possible price. If you are interested in finding out about currently lead times shoot us an email at support@mkmachining.com



Swarovski Z3 4-12×50 BT 4W Reticle Technical Data

Magnification

4-12x
Effective objective lens diameter (mm) 50
Exit pupil diameter (mm) 12.5-4.2
Exit pupil distance (mm) (Eye relief) 90
Field of view (ft/100 yds / m/100 m) 29.1-9.9 / 9.7-3.3
Field of view (degrees) 5.5-1.9
Field of view, apparent (degrees) 22.7
Dioptric compensation (dpt) -2.5 to +2.5
Light transmission (%) 90
Twilight factor acc. to ISO 14132-1

10.6-24.5

Impact point corr. per click (in/100 yds / mm/100 m)

0.25 / 7

Max. elevation / windage adjustment range (in/100 yds / m/100 m)

43 / 1.2

Objective filter thread

M 52×0.75

Length (in / mm)

13.78 / 350

Weight (oz / g)

14.5 / 410

Central tube diameter (in / mm)

1 / 25.4

Functional temperature

-4 °F to +131 °F (-20 °C / +55 °C)

Storage temperature

-22 °F to +158 °F (-30 °C / +70 °C)

Submersion tightness

13 ft / 4 m water depth (inert gas filling)

Swarovski Z3 4-12×50 BT 4W Reticle Downloads

Instruction Manuals

Instruction manual – Z3

Technical Data

Technical Data – Z3





Check out our other precision optics here

Additional information

Weight .1 oz

Reviews

There are no reviews yet.

Be the first to review “Swarovski Z3 Riflescope”

Your email address will not be published. Required fields are marked *
