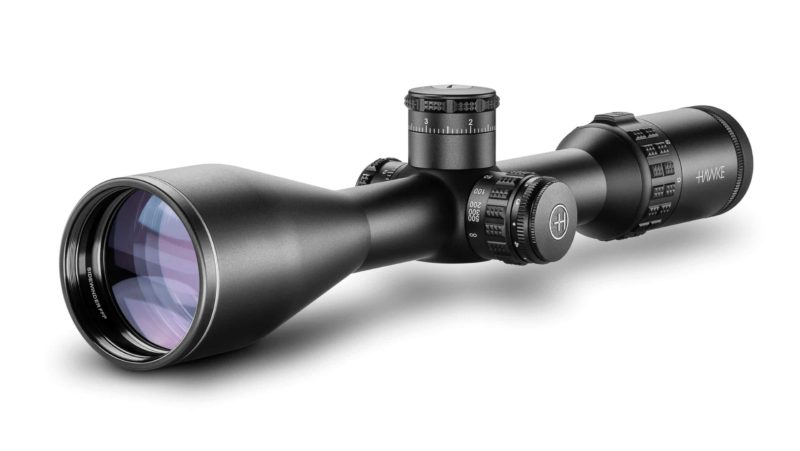

SIDEWINDER 30 FFP 6-24x56
SIDEWINDER 30 FFP 6-24×56 boast a stunning 24 ultra-wide field of view with generous 4 inch (100mm) eye relief. This projects a high volume ‘eye-box’ image that passes through the scope, bringing you closer to the action than ever before. Improved sharpness and clarity provides incredible accuracy and unrivaled down range performance. 18 layer multiple lens coatings allow for the intense light transmission required from top optical devices. High grade, low dispersion crown glass is used throughout to create crisp first and second focal plane optical systems that have minimal field curvature and distortion.
SIDEWINDER 30 FFP 6-24×56 Features
- Resettable Locking Turrets With Witness Window
- 30mm Mono-Tube Chassis
- Side Focus
- Illumination
- Side Wheel – Index-Matched (Removable)
- Ultra-Wide Angle 24° FOV
- High Volume Eyebox
- 100mm Eye Relief
- Multi-LED High Intensity Reticle
- High Grade, Low Dispersion Crown Glass
- 18 Layer Fully Multi-Coated Lenses
- Zoom Magnification Throw Lever (Removable)
- Fast Focus Eyebell With Lock Ring
SIDEWINDER 30 FFP 6-24×56 Specs
| Length:
|
363mm
|
14.3″
|
| Weight:
|
775g
|
27.3oz
|
| Eye relief:
|
102mm
|
4″
|
| Focus/Parallax – Fixed | 9m – ∞
|
10yds – ∞
|
| Field of View:
|
7.1-1.8m @100m
|
21.3-5.4ft @100yds
|
| Exit Pupil:
|
9.3-2.3mm
|
0.37-0.09″
|
| Chassis
|
30mm Mono-tube
|
| Optical System
|
6-24x
|
| Objective
|
56mm
|
| Illumination
|
Red (6 Levels of Brightness – Off Positions In-between)
|
| Reticle
|
FFP Half Mil/ FFP MOA
|
| Elevation Increment
|
1⁄10 MRAD\ 1/4 MOA
|
| Elevation Adjustment Range:
|
20 MRAD\ 69 MOA
|
| Windage Increment
|
1⁄10 MRAD\ 1/4 MOA
|
| Windage Adjustment Range
|
20 MRAD\ 69 MOA
|
| Material
|
Aluminum
|
| Ocular Type
|
Locking Fast Focus
|
| Lens Coating
|
Fully Multi-Coated – 18 Layers
|
| Power Selector Style
|
Knurled Posi-Grip with Removable Zoom Lever
|
| Focal Plane
|
First Focal Plane (FFP)
|
| Turret Caps
|
No
|
| Turret Type
|
Exposed Zero Lock ‘n’ Stop Turrets
|
FFP Half Mil Reticle
The FFP Half Mil reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil is a versatile reticle that provides aim points no matter how extreme the conditions.
A series of crosses etched on the lower section of the reticle make for extra windage aimpoints and act to give an easy quick-glance method of counting which mil spacing you’re aiming with. Outer posts are segmented into half mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.
FFP MOA
The FFP MOA reticle was developed specifically for first focal plane optical systems and based around the common principles of MOA spaced reticles. With MOA spaced markings out beyond 20 MOA in all directions, the FFP MOA is a versatile reticle that provides aim points no matter how extreme the conditions.
A series of crosses etched on the lower section of the reticle make for extra windage aimpoints and act to give an easy quick-glance method of counting which MOA spacing you’re aiming with. Outer posts are segmented into MOA spacings, so can be used for bracketing and rangefinding.
