Pro Series Universal Sunshade (Full)

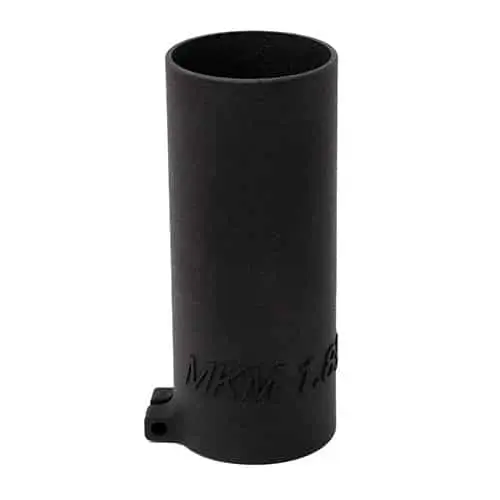

If you have an optic that doesn’t have a sunshade available, want to swap a single shade to multiple scopes, or just want an economical accessory with an extremely quick install our Pro Series Universal Sunshade (Full) fits the bill. Made out of a Nylon 11 material using an HP MJF 5210 Pro 3D Printer. Nylon 12 is slightly flexible to fit over your scope objective without becoming brittle and is strong enough to handle wear and tear. Has a 4-40 bolt and metal thread insert for tightening down the shade to keep it firmly in place. Features a full circular design. Extends approximately 4″ past objective.
Please use the chart below to find the sunshade that best fits your objective. If the objective of your scope doesn’t appear in one of the ranges listed below, please select custom sunshade size on the drop down above. If you select custom sunshade size please email us at [email protected] and please include a measurement of the outside diameter of your objective. Please note the measurement needs to be accurate down to .001. This will need to be measured with a pair of calipers. Failure to provide an accurate measurement in a timely manner may result in the order being canceled and refunded. Please allow 4-6 weeks for all custom orders.
| Sunshade Size | Outside Diameter (Inches) | Outside Diameter (Millimeters) |
| 2.57 | 2.638 – 2.56 | 67.005 – 65.024 |
| 2.5 | 2.54 – 2.48 | 64.516 – 62.992 |
| 2.39 | 2.441 – 2.365 | 62.001 – 60.071 |
| 2.29 | 2.333 – 2.244 | 59.258 – 56.997 |
| 2.2 | 2.205 – 2.185 | 56.007 – 55.499 |
| 2.15 | 2.106 – 2.091 | 53.492 – 53.111 |
| 2.05 | 2.075 – 2.016 | 52.705 – 51.206 |
| 1.96 | 2.006 – 1.929 | 50.952 – 48.996 |
| 1.89 | 1.895 – 1.834 | 48.133 – 46.583 |
| 1.74 | 1.791 – 1.725 | 45.491 – 43.815 |
| 1.57 | 1.615 – 1.535 | 41.021 – 38.989 |
| 1.35 | 1.378 – 1.29 | 35.001 – 32.766 |
| 1.15 | 1.184 – 1.177 | 30.073 – 29.895 |
More Information About MJF Printing.
Multi Jet Fusion uses an inkjet array to selectively apply fusing and detailing agents across a bed of nylon powder, which is then fused by heating elements into a solid layer. After each layer, powder is distributed on top of the bed and the process repeats until the part is complete. The method of printing allows for fine details and part geometries that are difficult to accomplish via other manufacturing processes. After each print job is completed parts are allowed to cool off to prevent warping. After parts have cooled, excess powered is removed via and automated blasting machine. After the excess powder is removed the parts receive in an initial polishing via an automated blasting machine. Next parts are dyed black with a custom made dye made for us by RIT. After parts have dried, they are polished one additional time to improve surface finish and color consistency.
