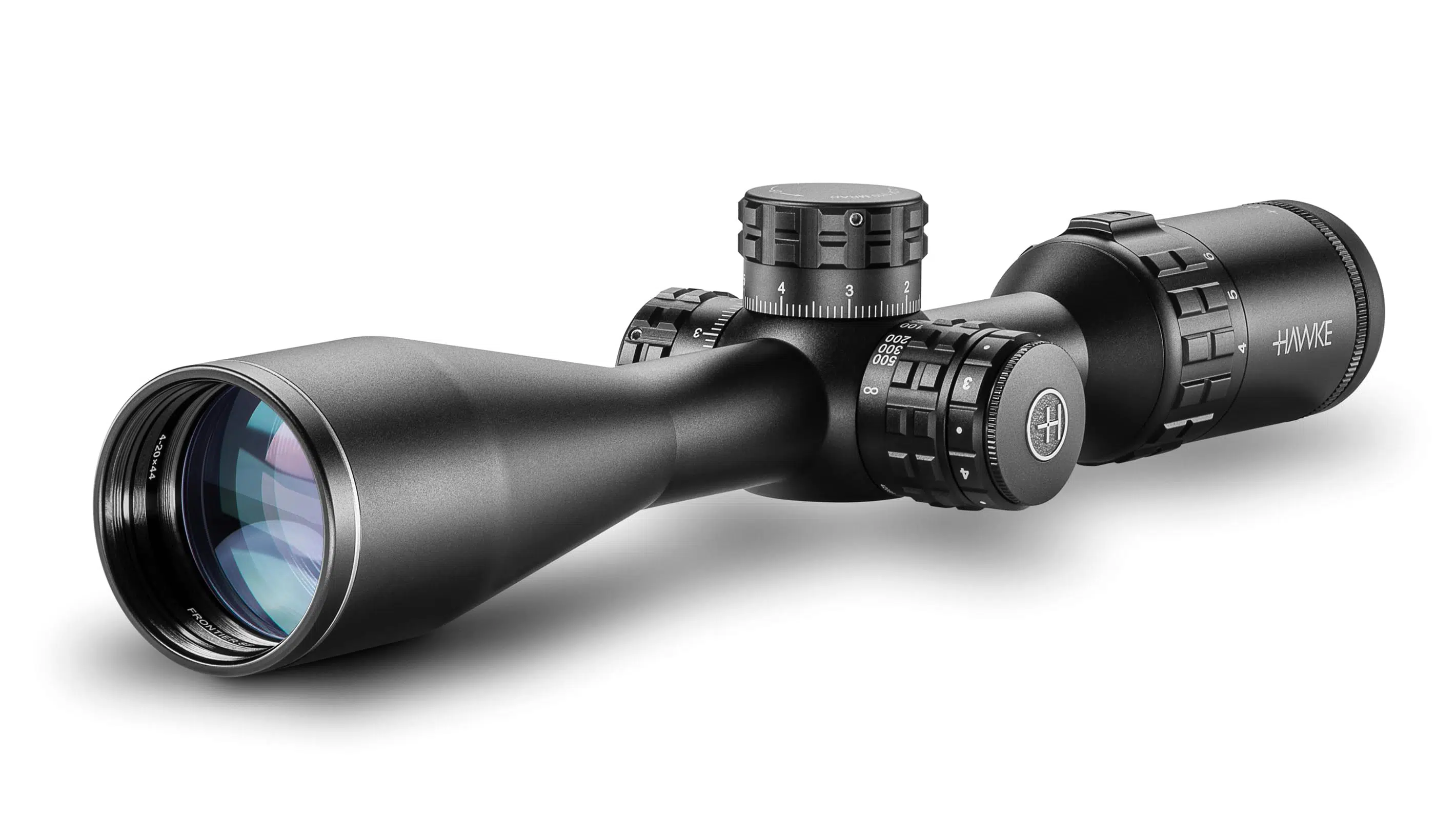

FRONTIER SF 4-20x44
FRONTIER SF 4-20×44, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting.
FRONTIER SF 4-20×44 Features
- Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
- 1 Inch Mono-Tube Chassis
- Side Focus
- Illumination
- Wide Angle FOV
- High Volume Eyebox
- 100mm Eye Relief
- Multi-LED High Intensity Reticle
- High Grade, Low Dispersion Crown Glass
- 21 Layer Fully Multi-Coated Lenses
- Zoom Magnification Throw Lever (Removable)
- Fast Focus Eyebell With Lock Ring
- Supplied With Professional Metal Flip-Up Covers.
FRONTIER SF 4-20×44
Length:
|
335mm
|
13.2″
|
Weight:
|
584g
|
20.6oz
|
Eye relief:
|
102mm
|
4″
|
Focus/Parallax – Side Focus | 9m – ∞
|
10yds – ∞
|
Field of View:
|
9.4-1.9m @100m
|
28.2-5.7ft @100yds
|
Exit Pupil:
|
11-2.2mm
|
0.43-0.09″
|
Chassis
|
1″ Mono-tube
|
Optical System
|
5x
|
Objective
|
44mm
|
Illumination
|
Red
|
Reticle
|
Mil Pro
|
Elevation Increment
|
1⁄10 MRAD
|
Elevation Adjustment Range:
|
19 MRAD
|
Windage Increment
|
1⁄10 MRAD
|
Windage Adjustment Range
|
19 MRAD
|
Material
|
Aluminum
|
Ocular Type
|
Locking Fast Focus
|
Lens Coating
|
Fully Multi-Coated – 21 Layers
|
Power Selector Style
|
Removable Zoom Lever
|
Focal Plane
|
Second Focal Plane (SFP)
|
Turret Caps
|
No
|
Turret Type
|
Exposed Zero Lock ‘n’ Stop Turret
|
Mil Pro (20x) Reticle
Accurate mil spacing on 20x magnification. With half Mil spaced markings extending out to 8 Mil of holdover, the Mil Pro (20x) is a versatile reticle that provides aim points no matter how extreme the distance.
All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
Mil Pro 20x models have additional 1⁄4 Mil aim points on the center section of the reticle to give even greater precision.
When on 20x magnification, the Mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 Mil spacing on the reticle, also known as 1 MRAD.
