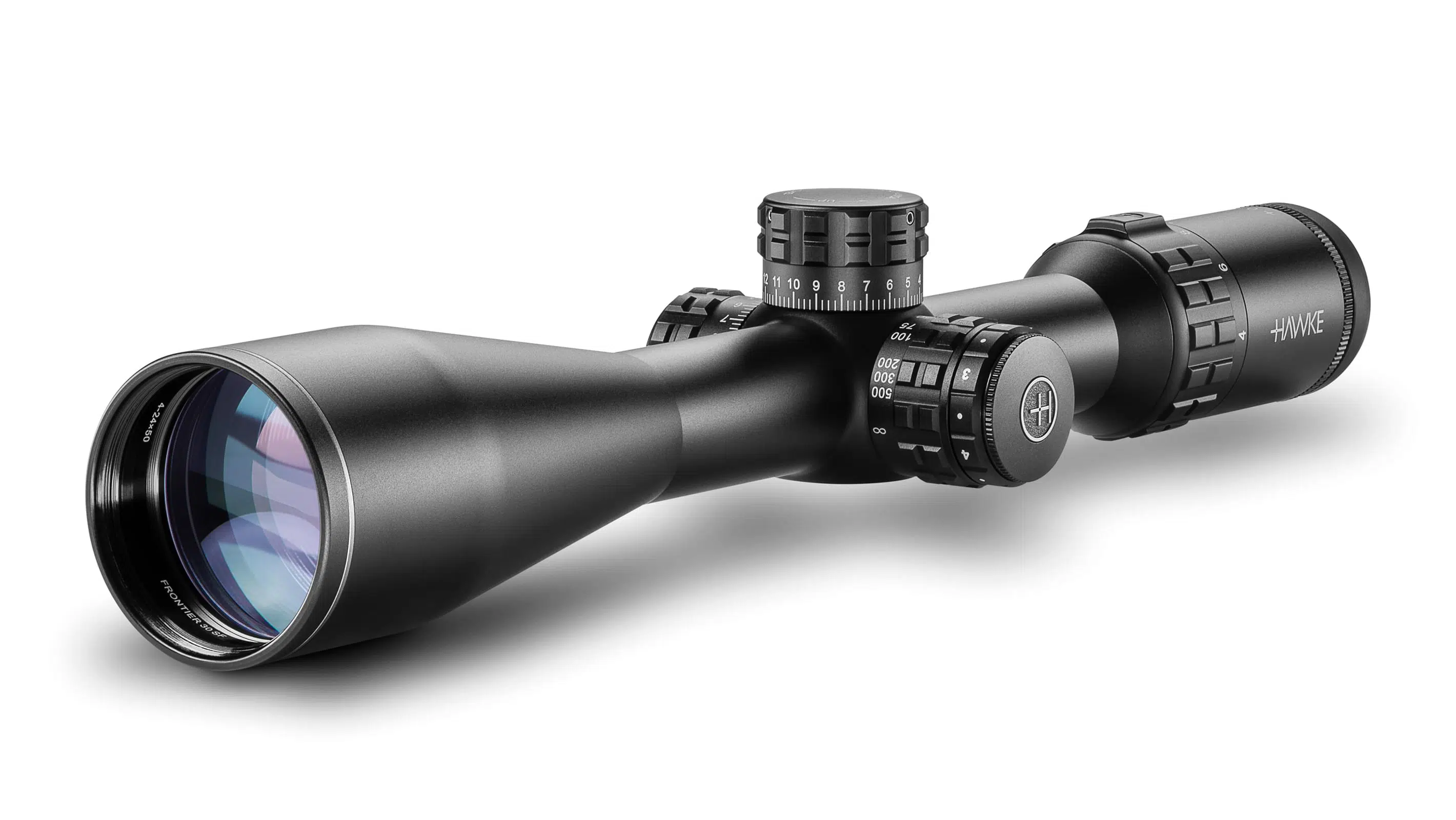

FRONTIER 30 SF 4-24x50

FRONTIER 30 SF 4-24×50, is part of our flagship line of Rifle Scopes, feature a selection of optical systems designed to give shooters ultimate flexibility in the field. The index matched lenses sets the Frontier optical system apart from its rivals. Exceptional clarity throughout the field of view, together with crisp image transmission ensure an unsurpassed viewing experience. The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting. Features Hawke’s lifetime no fault warranty. Includes Free Shipping!

FRONTIER 30 SF 4-24×50 Features

• Patented Exposed Zero Lock ‘N’ Stop Elevation Turret
• 30mm Mono-Tube Chassis
• Side Focus
• Illumination
• Wide Angle FOV
• High Volume Eyebox
• 100mm Eye Relief
• Multi-LED High Intensity Reticle
• High Grade, Low Dispersion Crown Glass
• 21 Layer Fully Multi-Coated Lenses
• Zoom Magnification Throw Lever (Removable)
• Fast Focus Eyebell With Lock Ring
• Supplied With Professional Metal Flip-Up Covers.

FRONTIER 30 SF 4-24×50 Specs

Length:	369mm	14.5″
Weight:	662g	23.4oz
Eye relief:	102mm	4″
Focus/Parallax – Fixed	14m – ∞	15yds – ∞
Field of View:	9.4-1.6m @100m	28.2-4.8ft @100yds
Exit Pupil:	12.5-2.1mm	0.49-0.08″

Chassis	30mm Mono-tube
Optical System	6x
Objective	50mm
Illumination	Red
Reticle	LR Dot

Elevation Increment	1⁄4 MOA
Elevation Adjustment Range:	75 MOA
Windage Increment	1⁄4 MOA
Windage Adjustment Range	75 MOA

Material	Aluminum
Ocular Type	Locking Fast Focus
Lens Coating	Fully Multi-Coated – 21 Layers
Power Selector Style	Removable Zoom Lever
Focal Plane	Second Focal Plane (SFP)
Turret Caps	No
Turret Type	Exposed Zero Lock ‘n’ Stop Turrets

Reticles

LR Dot Reticle

The LR Dot reticle was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry.

This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 16x magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.

Mil Pro (20x) Reticle

Accurate mil spacing on 20x magnification. With half Mil spaced markings extending out to 8 Mil of holdover, the Mil Pro (20x) is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

Mil Pro 20x models have additional 1⁄4 Mil aim points on the center section of the reticle to give even greater precision.

When on 20x magnification, the Mil spaced reticle and 1⁄10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 Mil spacing on the reticle, also known as 1 MRAD.
