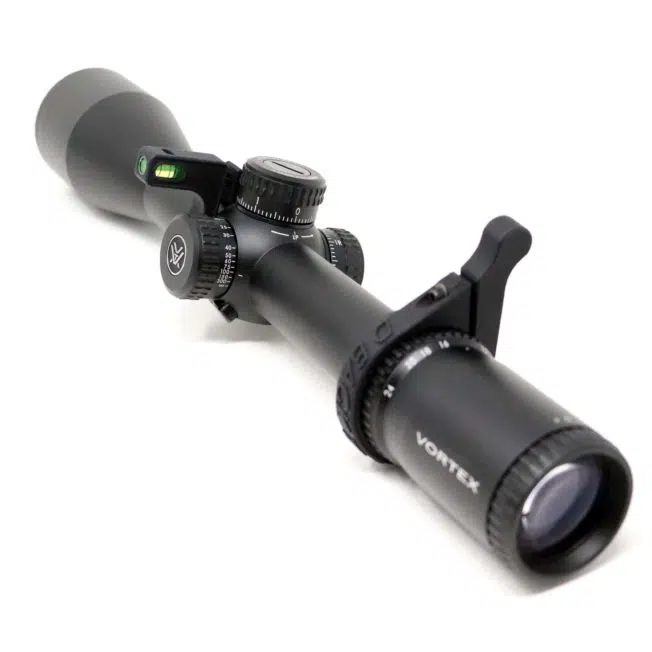

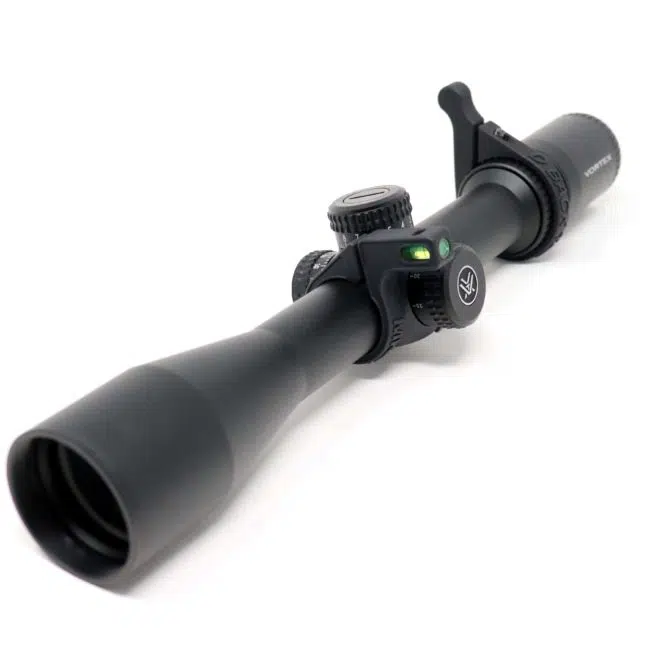

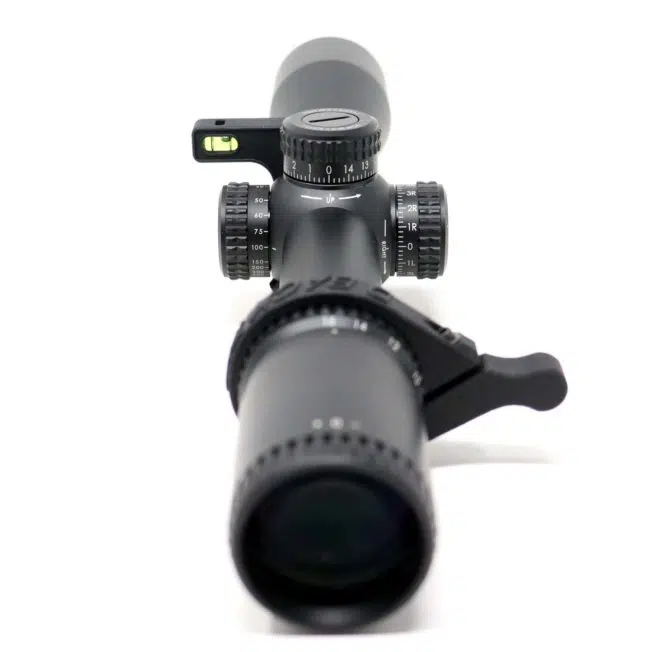

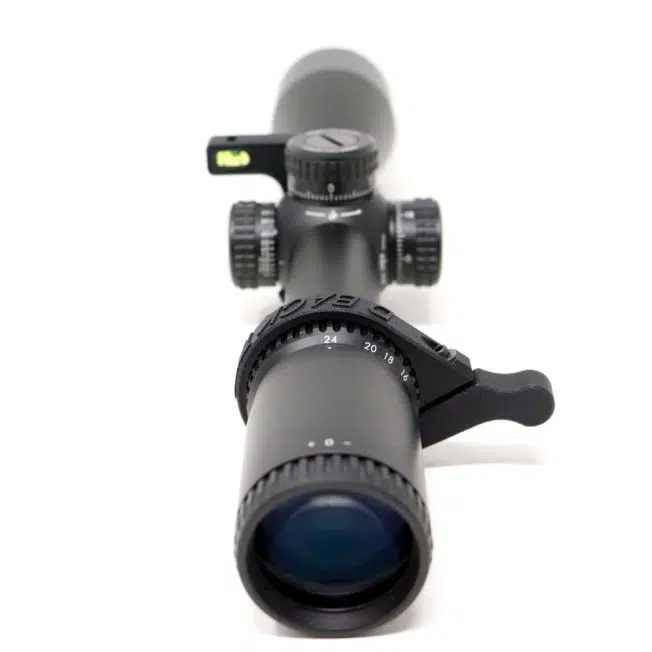

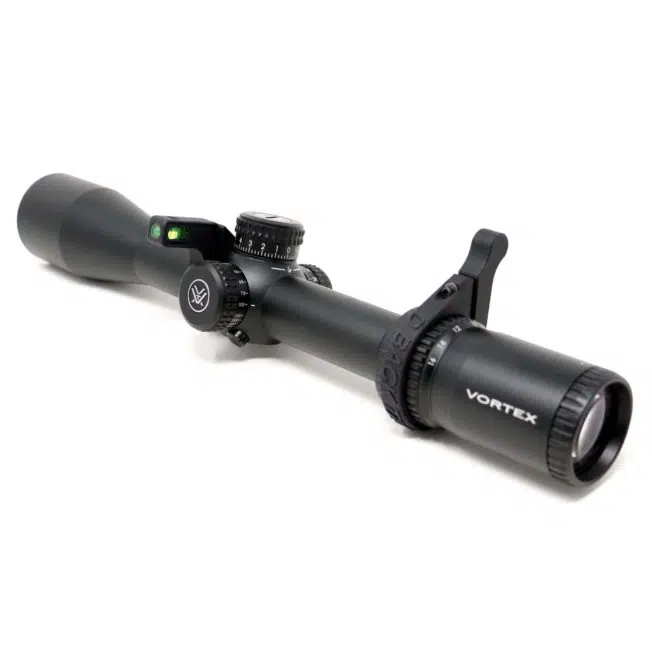

Diamondback Tactical 4-16×44 FFP
(Includes Free Pro Series Throw Lever and Level)
The Diamondback Tactical 4-16×44 FFP is a long-range wolf in sheep’s clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver’s seat with the potential to take on that 1,000 yard mark and beyond, all at a price that’s easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you’ve got yourself a perfectly capable competition rig without breaking the bank.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.06 | 2.24 | 2.7 | 6.43 | 3.83 | 3.77 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.01 | 1.73 |
FEATURES
| Aluminum Grade | Aircraft |
|---|---|
| Multi-Coated | Fully Multi-Coated |
| HD Lens Elements | XD™ |
| Shockproof | Rugged construction withstands recoil and impact. |
Specs – EBR-2C (MOA)
| Magnification | 4-16x |
|---|---|
| Objective Lens Diameter | 44 mm |
| Reticle | EBR-2C (MOA) |
| Turret Style | Tall Exposed Tactical |
| Tube Size | 30 mm |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 20 yards to infinity |
| Max Windage Adjustment | 85 MOA |
| Max Elevation Adjustment | 85 MOA |
| Travel Per Rotation | 15 MOA |
| Field of View | 26.9-6.7 ft/100 yds |
| Eye Relief | 3.8 inches |
| Length | 14.06 inches |
| Weight | 23.1 oz |
Diamondback Tactical 4-16×44 FFP Specs EBR-2C (MRAD)
| Magnification | 4-16x |
|---|---|
| Objective Lens Diameter | 44 mm |
| Reticle | EBR-2C (MRAD) |
| Turret Style | Tall Exposed Tactical |
| Tube Size | 30 mm |
| Adjustment Graduation | .1 MRAD |
| Parallax Setting | 20 yards to infinity |
| Max Windage Adjustment | 25 MRAD |
| Max Elevation Adjustment | 25 MRAD |
| Travel Per Rotation | 6 MRAD |
| Field of View | 26.9-6.7 ft/100 yds |
| Eye Relief | 3.8 inches |
| Length | 14.06 inches |
| Weight | 23.1 oz |
EBR-2C (MOA)Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
Subtension detail for Diamondback Tactical 4-16×44 FFP riflescope with EBR-2C MOA reticle.
.
EBR-2C (MRAD)Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
Subtension detail for Diamondback Tactical 4-16×44 FFP riflescope with EBR-2C MRAD reticle.
